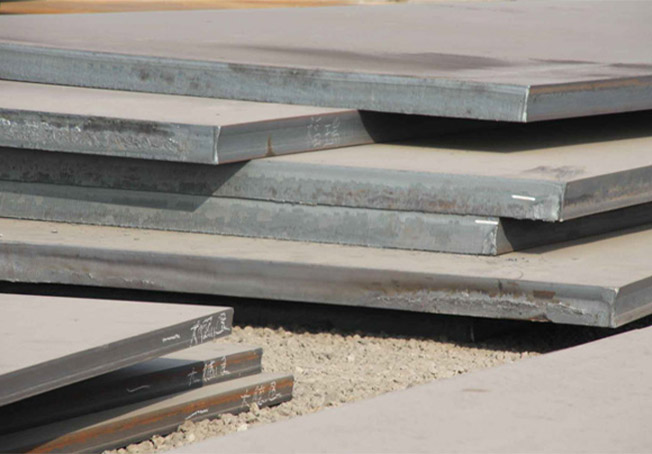

XAR500 Wear Resistance Sheet
  • XAR500 Wear Resistance Sheet
  • XAR500 Wear Resistance Sheet
  • XAR500 Wear Resistance Sheet

XAR500 Wear Resistance Sheet

XAR 500 abrasion plates are often used in the manufacture of hydraulic hammers. These hammers are used to demolish buildings and are subject to wear from stones and gravel.

What is XAR 500 Wear Resistant Steel?

XAR 500 wear-resistant steel plate: Maintains formable and weldable properties, adds element B, has higher wear resistance, suitable for conveyors, crushers, trucks, etc. Should be delivered in water quenched state.

XAR 500 Wear Steel Plate Parameter:

XAR 500 wear resistant steel chemical composition:

PLATE C Si Mn P S Cr Ni Mo B CEV CET
THICKNESS MM MAX % MAX % MAX % MAX % MAX % MAX % MAX % MAX % MAX % TYPV TYPV
4-13 0.27 0.7 1.6 0.025 0.01 1.0 0.25 0.25 0.004 0.49 0.34
(13) -32 0.29 0.7 1.6 0.025 0.01 1.0 0.50 0.30 0.004 0.62 0.41
(32) -40 0.29 0.7 1.6 0.025 0.01 1.0 1.00 0.60 0.004 0.64 0.43
(40) -80 0.30 0.7 1.6 0.025 0.01 1.50 1.50 0.60 0.004 0.74 0.46

XAR 500 abrasion resistant plate mechanical property:

Thickness Hardness HBW Typical yield strength MPa,
mm min – max 1) not guaranteed
4 – 32 470 – 530 1250
(32) – 103 450 – 540 1250

XAR 500 Wear Resistance Steel Plate properties:

  • Hardness up to 600 Brinell hardness;
  • Service life at least five times longer than conventional structural steels;
  • Excellent for bending and folding;
  • Good welding and cutting properties.

XAR 500 Abrasion Resistant Steel Sheet Dimensions:

Lbs./Sq.Ft Thickness Size
20.420 1/2″ 96″ x 240″
12.760 5/16″ 96″ x 240″
7.660 3/16″ 96″ x 240″
15.310 3/8″ 96″ x 240″
10.210 1/4″ 96″ x 240″
25.520 5/8″ 96″ x 240″
30.630 3/4″ 96″ x 288″
40.840 1″ 96″ x 240″

XAR 500 Abrasion Resistant Wear Plates Application:

» XAR 500 abrasion plates are often used in the manufacture of hydraulic hammers. These hammers are used to demolish buildings and are subject to wear from stones and gravel.

» Excavator buckets are subject to severe sliding and direct impacts and are used to dig into the earth’s surface. Wear-resistant steel plates are often used to manufacture all or only the edges and sides of these buckets.

» Crusher in recycling or mineral plants crushes huge stones or cuts waste into small pieces for use. Here, XAR 500 abrasion resistant metal (ROCKSTAR 500, RAEX 500 and FORA 500) provide maximum protection for the crusher lining plates against damage from thorns, rocks and sharp gravel.
