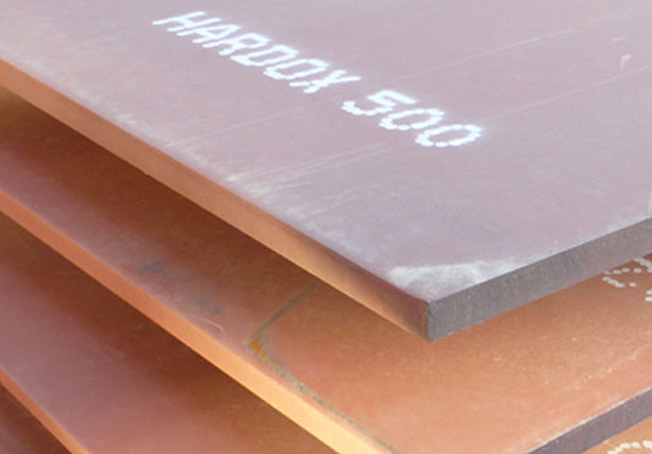

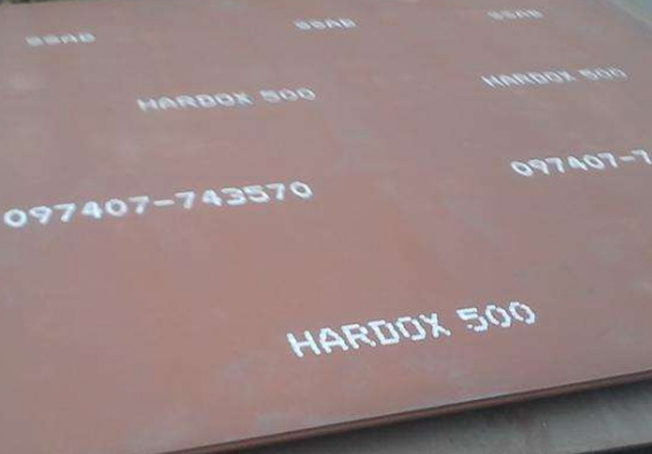

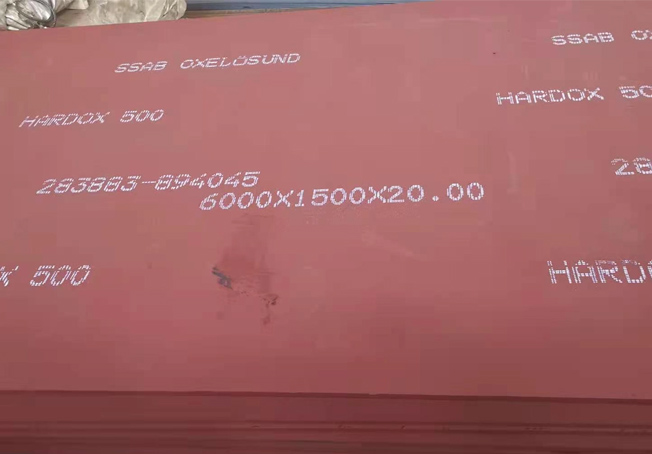

Hardox 500 Abrasion Resistant Metal

Hardox 500 is a bendable wear resistant grade. Hardox 500 plates are engineered with premium chemical ingredients such as Carbon, Silicon, Nickel Molybdenum, Chromium, Boron, Sulphur, Manganese and Phosphorus. The premium ingredients embedded in Hardox® 500 wear plates give these modules enhanced corrosion resistance and tolerance.

What is Hardox 500 abrasion resistant steel?

Hardox 500 is a bendable wear resistant grade. Hardox 500 plates are engineered with premium chemical ingredients such as Carbon, Silicon, Nickel Molybdenum, Chromium, Boron, Sulphur, Manganese and Phosphorus. The premium ingredients embedded in Hardox® 500 wear plates give these modules enhanced corrosion resistance and tolerance. With a nominal hardness of 500 Brinell, these plates resist wear from stress-inducing systems. Hardox® 500 wear resistant plates offer good impact resistance and are not prone to sliding.

These robust plates are very effective in environments subject to abrasive media. Plates of this grade are typically designed with thicknesses starting at 6mm and can extend to 100mm or more as required. 500 HBW plates have a design density of 8 kg/m3, a typical yield strength of 1400mpa and an impact energy of 37 J at -40 degrees Celsius.

Hardox 500 Wear Resistant Plate Parameter:

Chemical Compositiom
Plate P Si C Mn Ni S Cr B Mo CET CEV
thickness mm max % max % max % max % max % max % max % max % max % typv typv
(40)-80 0.025 0.7 0.30 1.6 1.50 0.01 1.50 0.004 0.60 0.46 0.74
(13)-32 0.025 0.7 0.29 1.6 0.50 0.01 1.00 0.004 0.30 0.41 0.62
4-13 0.025 0.7 0.27 1.6 0.25 0.01 1.00 0.004 0.25 0.34 0.49
(32)-40 0.025 0.7 0.29 1.6 1.00 0.01 1.00 0.004 0.60 0.43 0.64
Mechanical properties
Mechanical Property Charpy V Impact Test
HBW Thickness/Mpa Elongation Degree longitudinal
4-32MM 470-530 Min  % -40 J
(32)-80 450-540 10 40

Benefits of Hardox 500 Plates :

Hardox 500 wear resistance steel plate is known for its excellent wear and impact resistance. It has a nominal hardness of 500 HBW, which means it can withstand intense wear and tear from heavy machinery and materials. The wear resistance of Hardox 500 abrasion resistant wear plates has been tested in the laboratory and in real applications and has proven to be superior to other AR steels. In addition, Hardox 500 abrasion plate has a high yield strength, making it a versatile material for structural applications. It is resistant to bending and breaking and is suitable for harsh temperatures and environments.

Hardox 500 Wear Resistant Plate Dimensions:

Thickness Lbs./Sq.Ft Size
1/4″ 10.210 96″ x 240″
3/16″ 7.660 96″ x 240″
3/8″ 15.310 96″ x 240″
5/16″ 12.760 96″ x 240″
1/2″ 20.420 96″ x 240″
3/4″ 30.630 96″ x 288″
5/8″ 25.520 96″ x 240″
1″ 40.840 96″ x 240″

Where is Hardox® 500 wear steel plate used?

Hardox 500 abrasion resistant steel sheet has a wide range of uses across industries, especially those where heavy machinery and equipment are subject to constant wear and tear. Mining, quarrying, construction, demolition, transport and shipping are the main industries that rely on the durability and wear resistance of Hardox 500. Hardox 500 abrasion resistant metal can be used in dump truck bodies, excavator buckets, conveyor belts and tippers. It is ideal for heavy-duty applications that require a strong, impact-resistant material that can withstand heavy loads.
